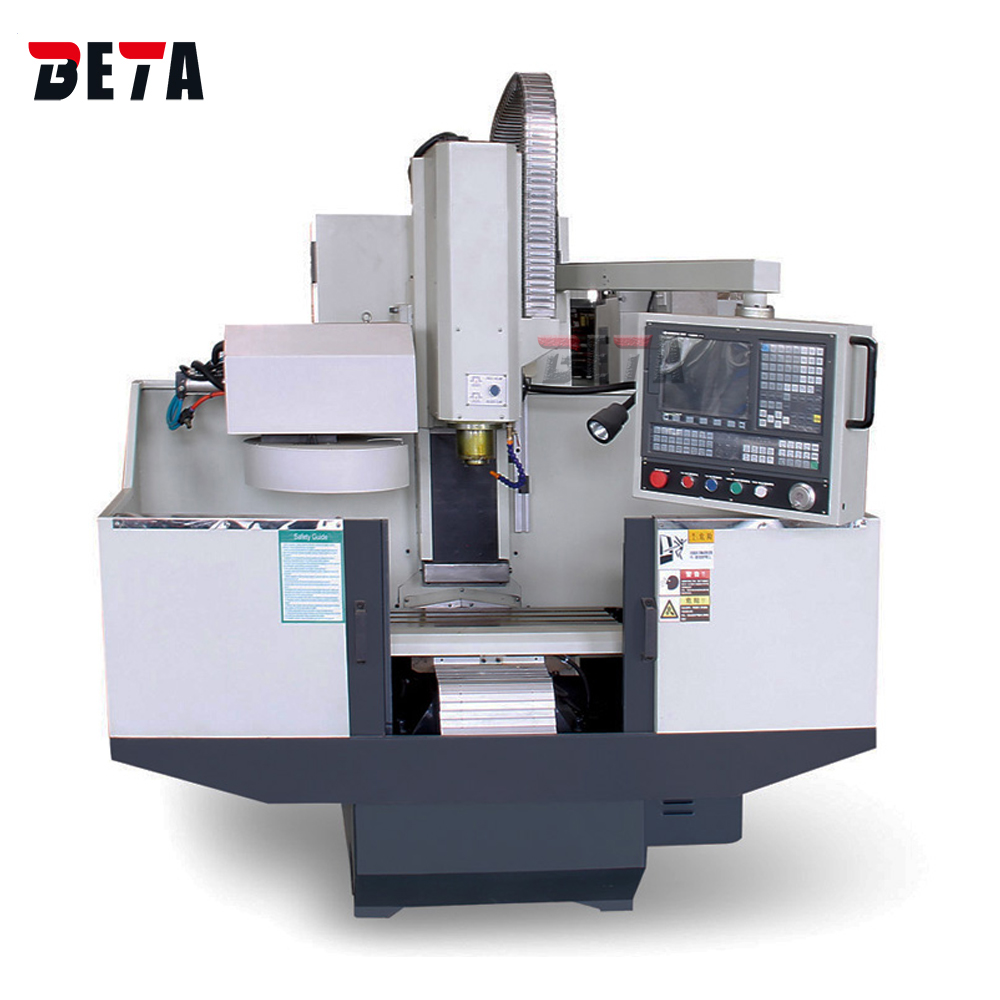

CNC Vertical Milling Machining Center
XH7124L
Worktable size 810x240mm
Travel X/Y/Z axis 380/240/370mm
Spindle taper BT30 with Max. spindle speed 6000rpm
3-axis linear guide way
10 pcs ATC
INQUIRY
  • Features
  • Specification
  • CONFIGURATION

1. Special design for mini size CNC milling machining.

2. High speed and precision spindle unit with servo motor driven.

3. X, Y, Z 3 axis linear guideway.

4. Automatic tool changer 10 tools is optional .

5. Tool release and clamp pneumatically.

6. Siemens 808D CNC system.

7. Iron casting machine stand with high rigidity.


ModelXH7124L
Size810*240mm
Max. loading weight100mm
T slot16mm/3/60mm
X/Y/Z axis380/240/370mm
Distance between spindle nose and table60-430mm
Distance between spindle center and column309mm
Spindle speed100-6000 rpm
Spindle taperBT30
Tool clamping typepneumatically
ATC capacity10 pcs
Feeding speed0-2000 mm/min
Rapid feeding speed15 mm/min
Positioning accuracy0.025
Repeatability accuracy0.016
Main motor power X/Y/Z axis2.2/3.7 kw
Feeding motor power1.5/1.5/1.5 kw
Max. size of tool60*175mm
Max. loading weight of tool3.5 kg
Packing size1900*1620*2480mm
Machine weight1280 kg


Standard configuration:

810*240mm worktable

BT30 spindle unit with 6000rpm spindle speed

X,Y,Z-axis with Linear guide way from Taiwan

10 pcs automatic tool changer

Full-closed protection cover

Work light

Coolant system

Automatic Lubrication system

Tool-released and clamped pneumatically

GSK CNC controller


Optional configuration:

Siemens, FANUC CNC controller
