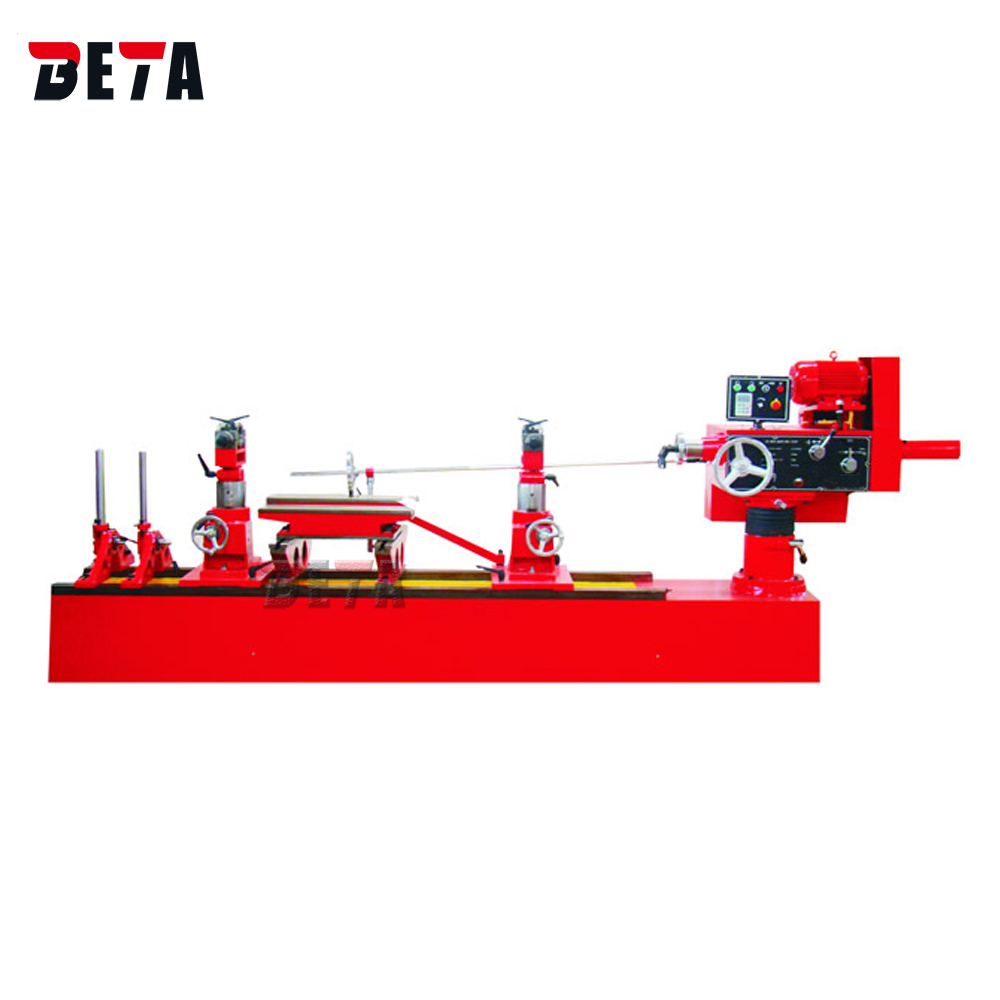

Line boring machine
T8115VF T8120VF
  • Features
  • Specification
  • CONFIGURATION

1. This kind of line boring machine is repairing machine tools with high efficiency and high precission.

2. It can be used for boring master bushing and bushing of engine & generator's cylinder bodier in automobiles, tractors and ships etc.

3. If necessary, the flywheel hub bore and bushing seat hole can be also finely bored, to be supplied with following accessories : accessories for centering, sectifying tool, measuring inner diameter, boring rod bracket, tool holder to increase diameter, boring tool micro-adjuster and for distance tool sectifying device can be provided with the main machine.


MODEL

T8115VF

T8120VF

Range of hole diameter to be bored

Φ36-Φ150 mm

Φ36-Φ200 mm

Max.length of cylinder body to be bored

1600 mm

2000 mm

Main shaft max elongation

300 mm

300 mm

Spindle speed

30-500 rpm

30-500 rpm

Boring shaft feed

0.044, 0.167 mm/r

0.044, 0.167 mm/r

Motor power

0.75/1.1 kw

0.75/1.1 kw

Overall dimensions

3500*800*1500 mm

3900*800*1500 mm

Packing size

3650*1000*1600 mm

4040*1020*1600 mm

N.W./G.W.

1900/2200 kg

2200/2500 kg


Standard accessories:

boring bar

boring sleeve

extending shaft

cylinder clamping device

centering sleeve

measuring device

boring cutter
