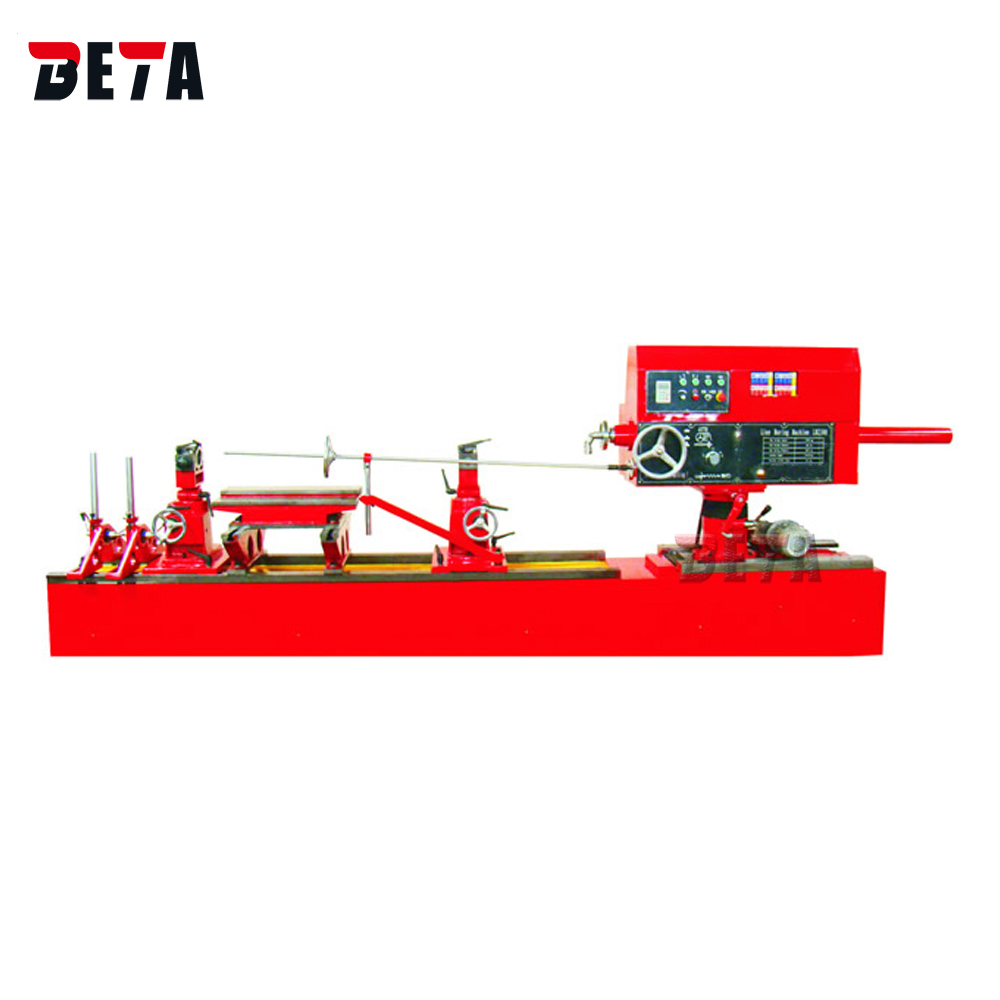

Line boring machine
LB2300
  • Features
  • Specification
  • CONFIGURATION

1. Gearbox moves 450mm and the main spindle traverses 550mm it can cut 1000mm on time , provide a high efficiency work and make the workpiece congruously.

2. The main spindle is inverter motor (stepless speed).4grades feed widely used for work with different kinds of materials

3. The maximum working length of cylinder block up to 2300mm


MODEL

LB2300

Range of hole diameter to be bored

Φ22mm-Φ250mm

Max.length of cylinder body to be bored

2300mm

Main shaft max elongation

550mm

Spindle speed

30-467rpm

Shaft feed speed

0.04, 0.08, 0.12, 0.18mm/r

Max movement of spindle box

450mm

Motor power

1.5kw

Motor power of spindle box

0.37kw

Overall dimensions

4520x900x1540mm


Standard accessories:

boring bar

boring sleeve

extending shaft

cylinder clamping device

centering sleeve

measuring device

boring cutter
