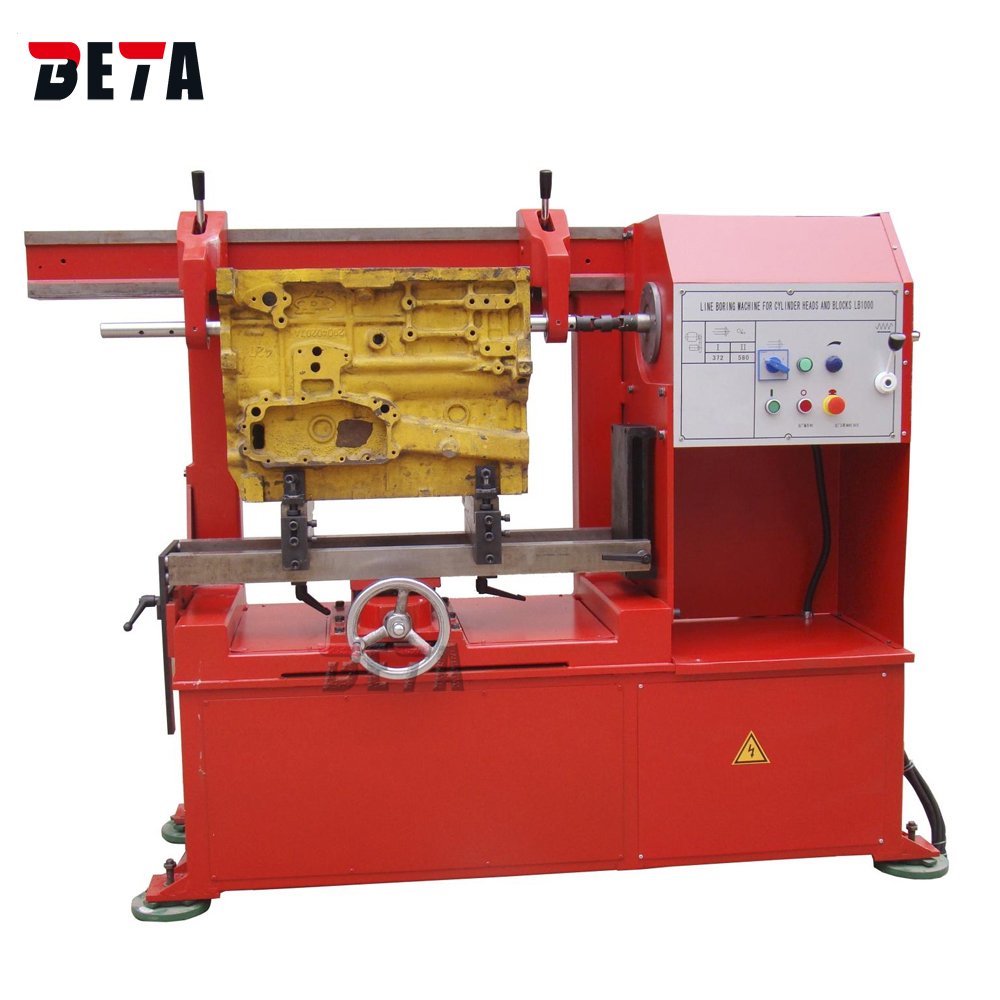

Line boring machine
LB1000
  • Features
  • Specification
  • CONFIGURATION

1. This machine was specially designed for boring Middle & Small engine blocks, crankshaft bush and camshaft bush.

2. It also can be used for con rod bush with special fixture.

3. The boring carriage adopts guideway moving, center of main shaft already adjusted in advance, vertical column go up and down, Make the work piece to find positive and accurate.

4. Good rigidity, spindle feeding stepless, boring with high accuracy.

5. It purposed used in automotive service and repair filed.




MODEL

LB1000

Boring range

Φ24-Φ110 mm

Max.distance between parallel& shaft center

450 mm

Max.length of workpiece

1000 mm

Max.movement of main shaft

100 mm

Spindle speed

580,373 r/min

Feeding of boring shaft

Stepless

Main motor power

0.75/0.55 kw

Overall dimensions(L x W x H)

1850x600x1375 mm

Packing size(L x W x H)

1980x750x1700 mm

N.W/G.W

600/800 kg


Standard accessories:

boring bar
