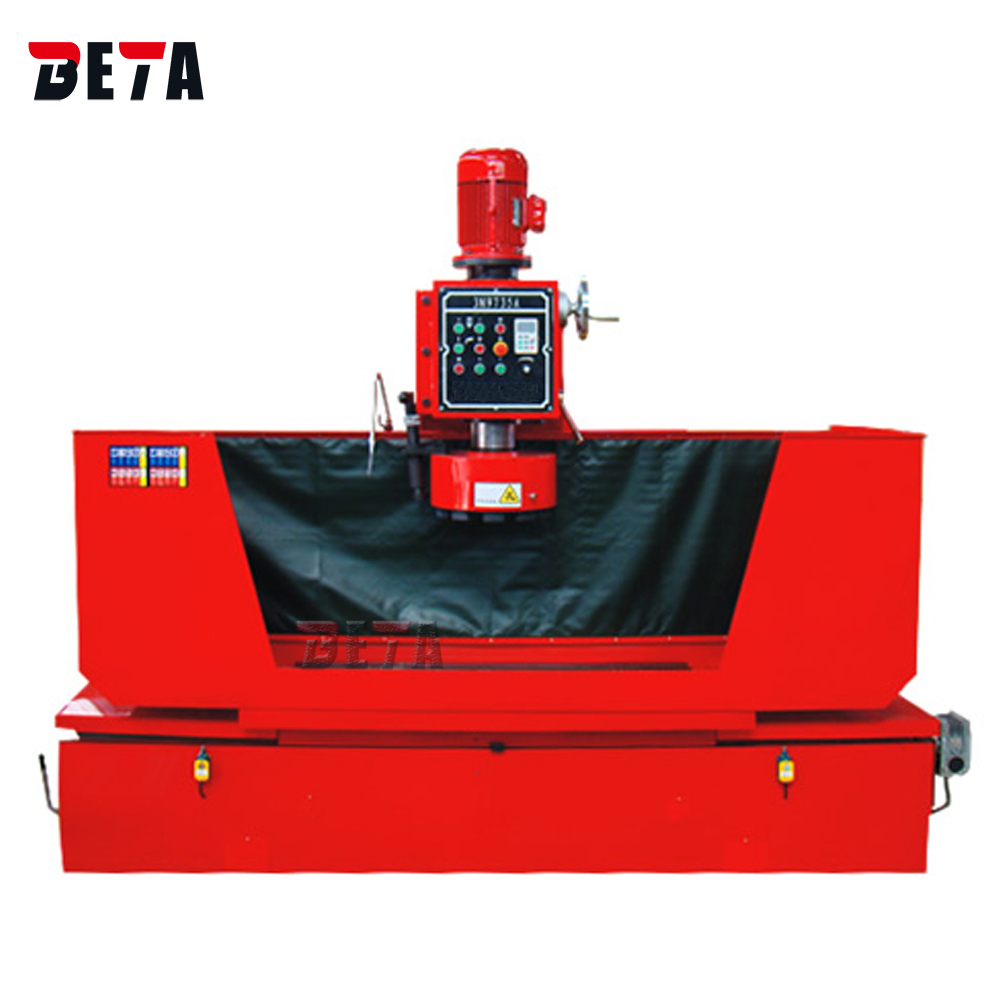

cylinder head and block milling grinding machine
3M9740A
  • Features
  • Specification
  • CONFIGURATION

1. This machine is a vertical grinding and milling machine, with high grinding efficiency and accurate.

2. The table movement of this machine is driving by gear motor and ball screw .

3. Stepless speed frequency control, convenient and stable adjustment.

4. Coupled with special fixtures to achieve multi-angle grinding cylinder and head.

5. The casting part of this machine is resin sand casting, deformation is small neat appearance.


MODEL

3M9740A x 130

3M9740A x 150

worktable size

1300mm x 500mm

1500mm x 500mm

Max.working length

1300mm

1500mm

Max.width of gringding

400mm

400mm

Max.height of gringding

600mm

800mm

Spindle travel

70mm

70mm

number of segments

12 piece

12 piece

Grinding segment diameter

400mm

400mm

spindle speed

1400/700r/min

1400/700r/min

Overall dimensions

2800*1050*2100

2800*1050*2100

packing dimensions

3100*1150*2150

3100*1150*2150

N.W/G.W

2.8T/3.1T

3.0T/3.3T


Standard accessories:

parallel support

grinding disck

grinding wheel dresser

cooling tank

grinding tiles

milling cutters

wheel balance stand and arbor


Optional accessories:

Digital readout

diamond dresser

universal support
