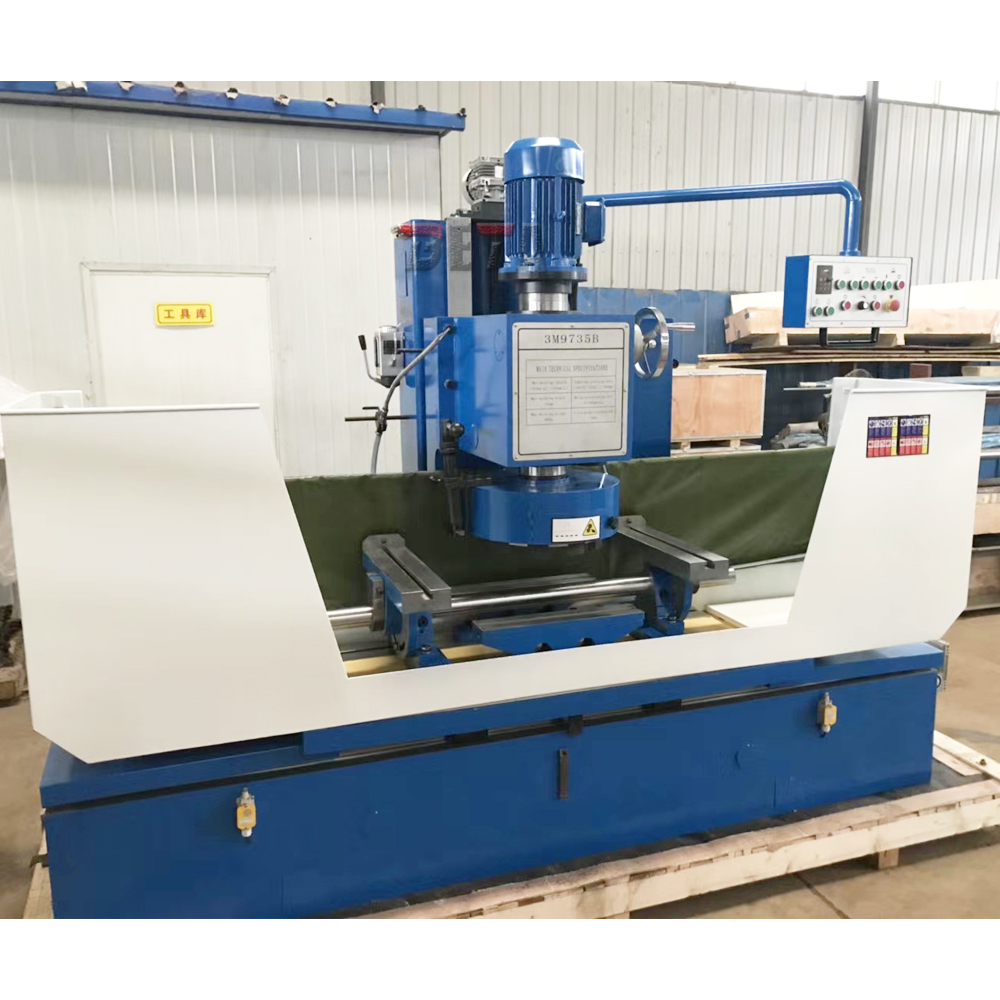

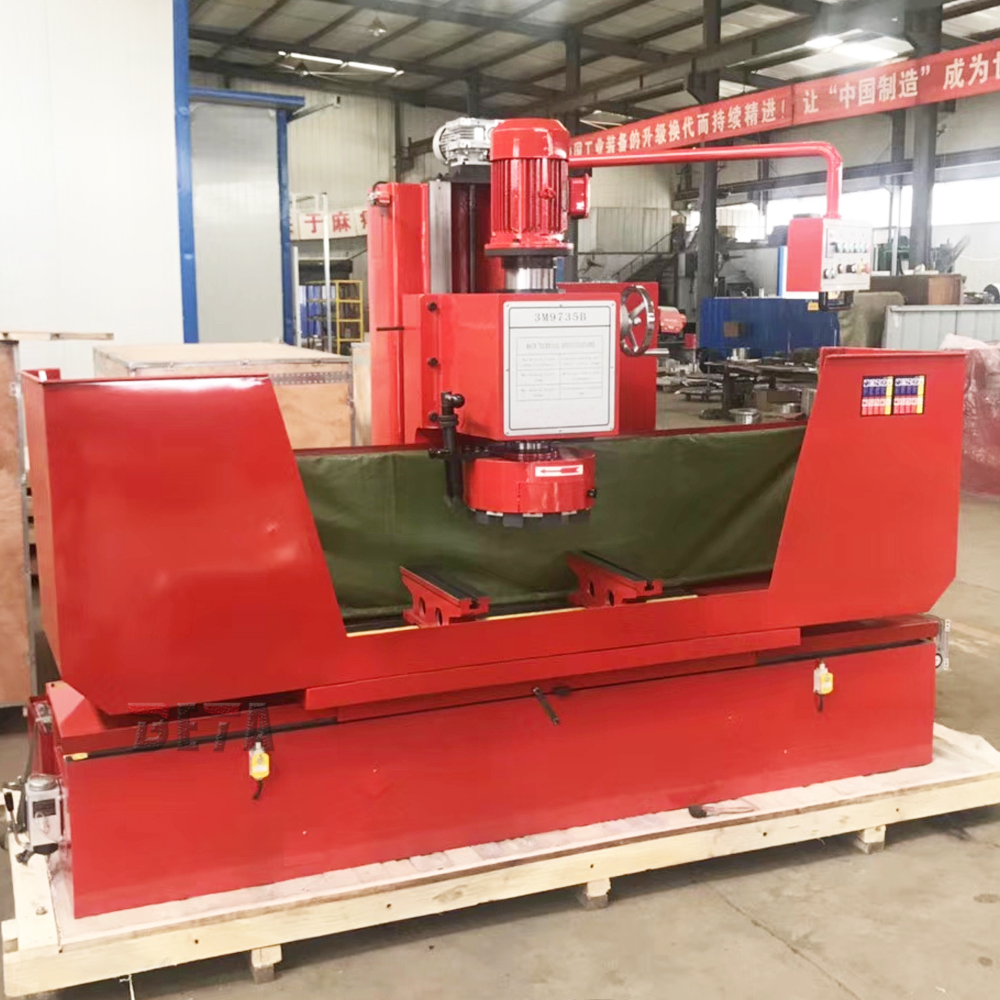

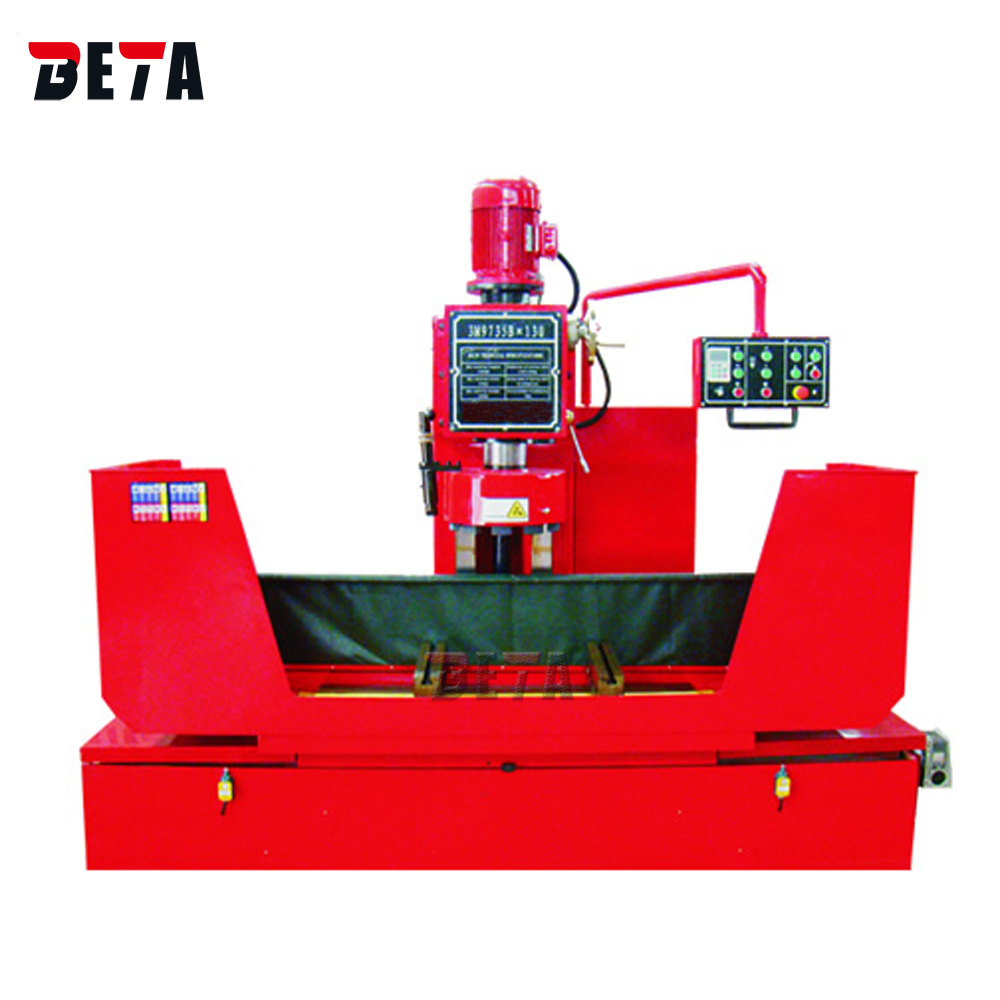

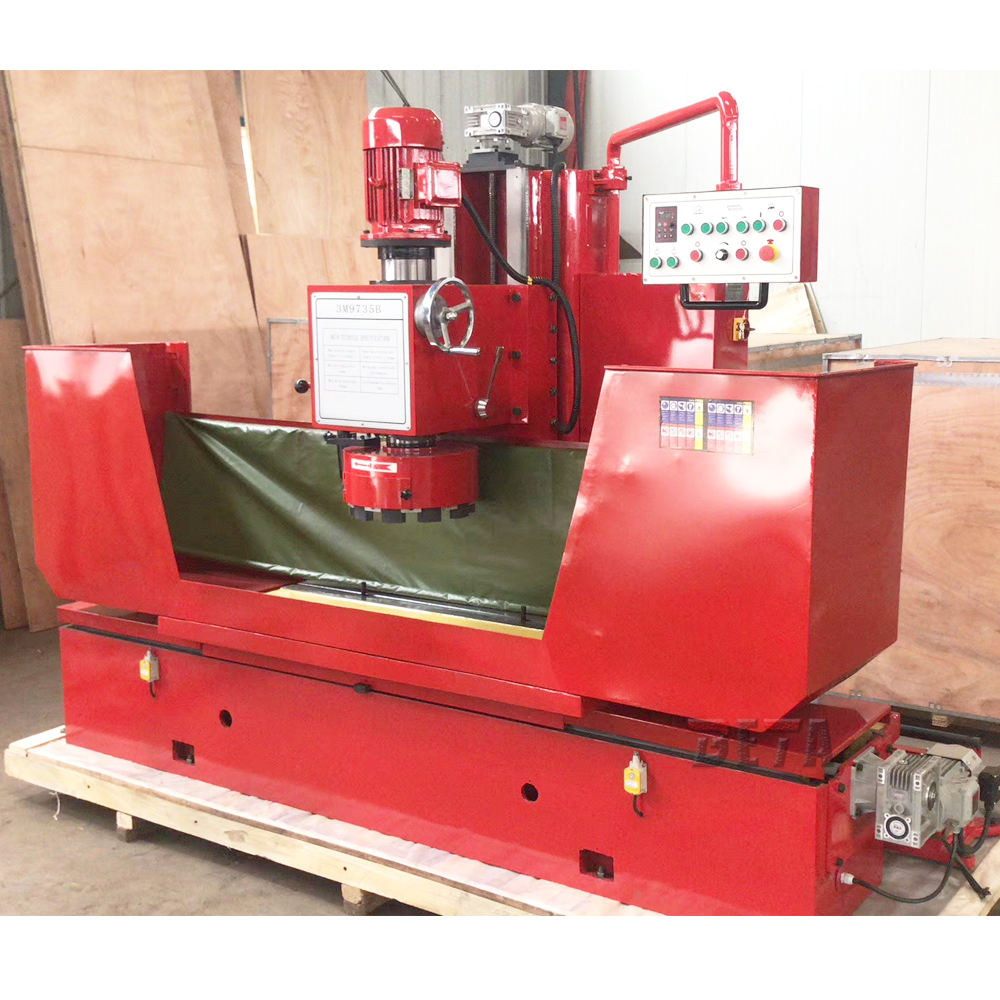

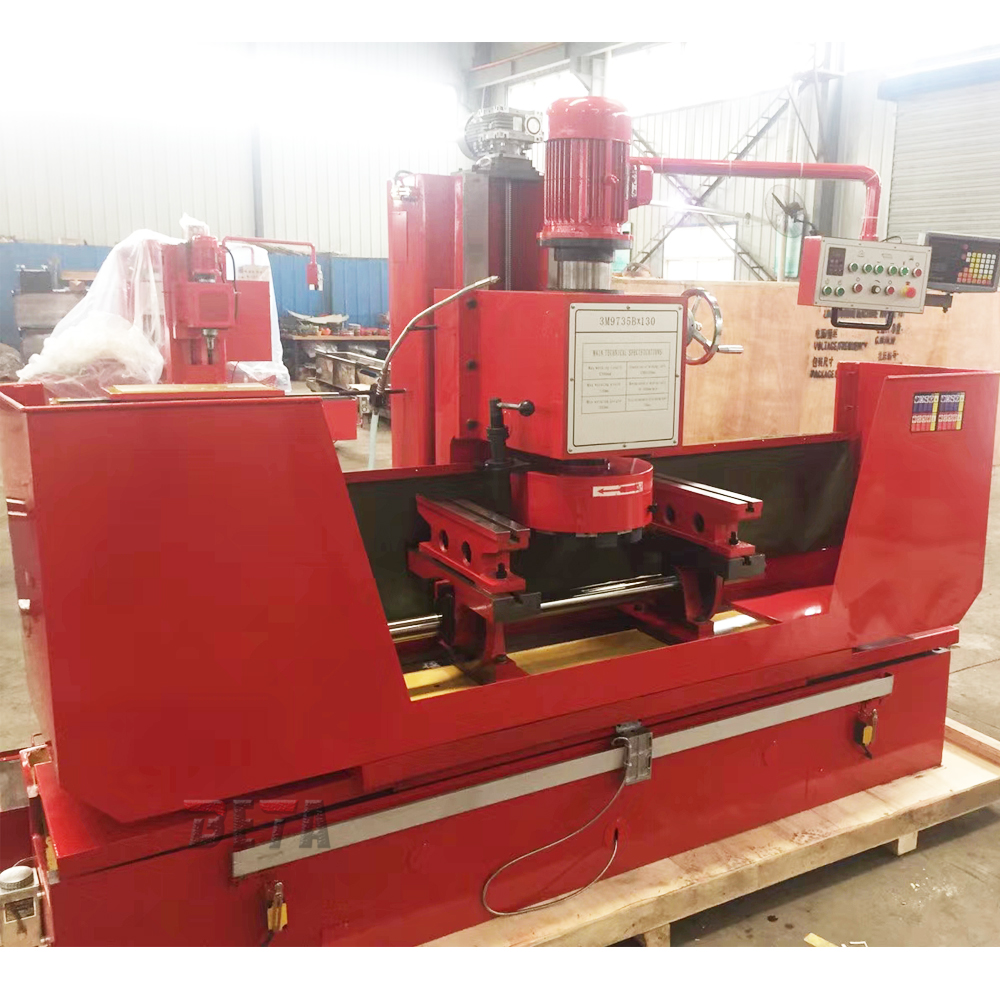

cylinder head and block milling grinding machine
3M9735B
  • Features
  • Specification
  • CONFIGURATION

1. This machine is a vertical grinding and milling machine, with high grinding efficiency and accurate.

2. The table movement of this machine is driving by gear motor and ball screw .

3. Stepless speed frequency control, convenient and stable adjustment.

4. Coupled with special fixtures to achieve multi-angle grinding cylinder and head.

5. The casting part of this machine is resin sand casting, deformation is small neat appearance.




MODEL

3M9735B x 130

3M9735B x 150

Worktable size

1300mm x 500mm

1500mm x 500mm

Max working length

1300mm

1500mm

Max.width of grinding

350mm

350mm

Max.height of grinding

800mm

800mm

Spindle box travel

800mm

800mm

Number of segments

10 piece

10 piece

Spindle speed

1400/700 r/min

1400/700 r/min

Overall dimensions

2800x1050x17000mm

2800x1050x2100mm

Packing dimensions

3100x1150x2150mm

3100x1150x2150mm

N.W/G.W

2.5T/2.8T

2.7T/3.0T


Standard accessories:

parallel support

grinding disck

grinding wheel dresser

cooling tank

grinding tiles

milling cutters

wheel balance stand and arbor


Optional accessories:

Digital readout

diamond dresser

universal support
