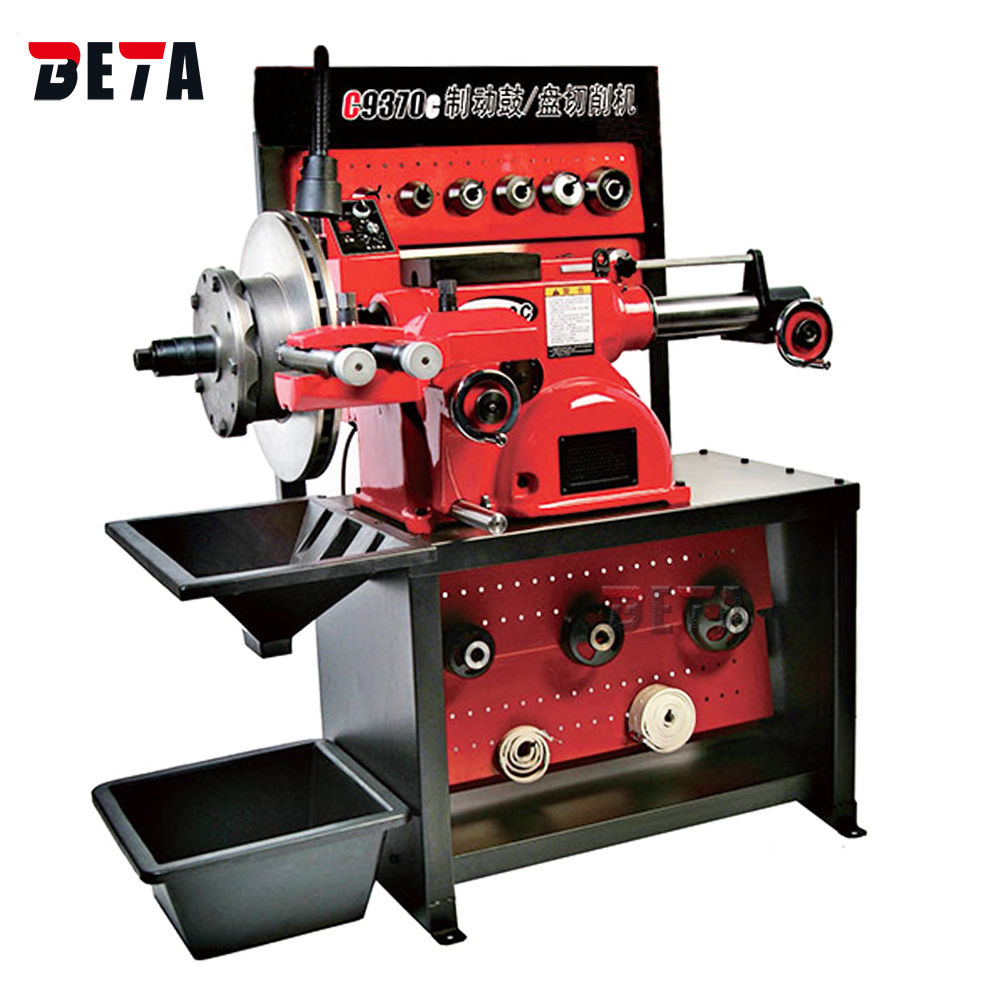

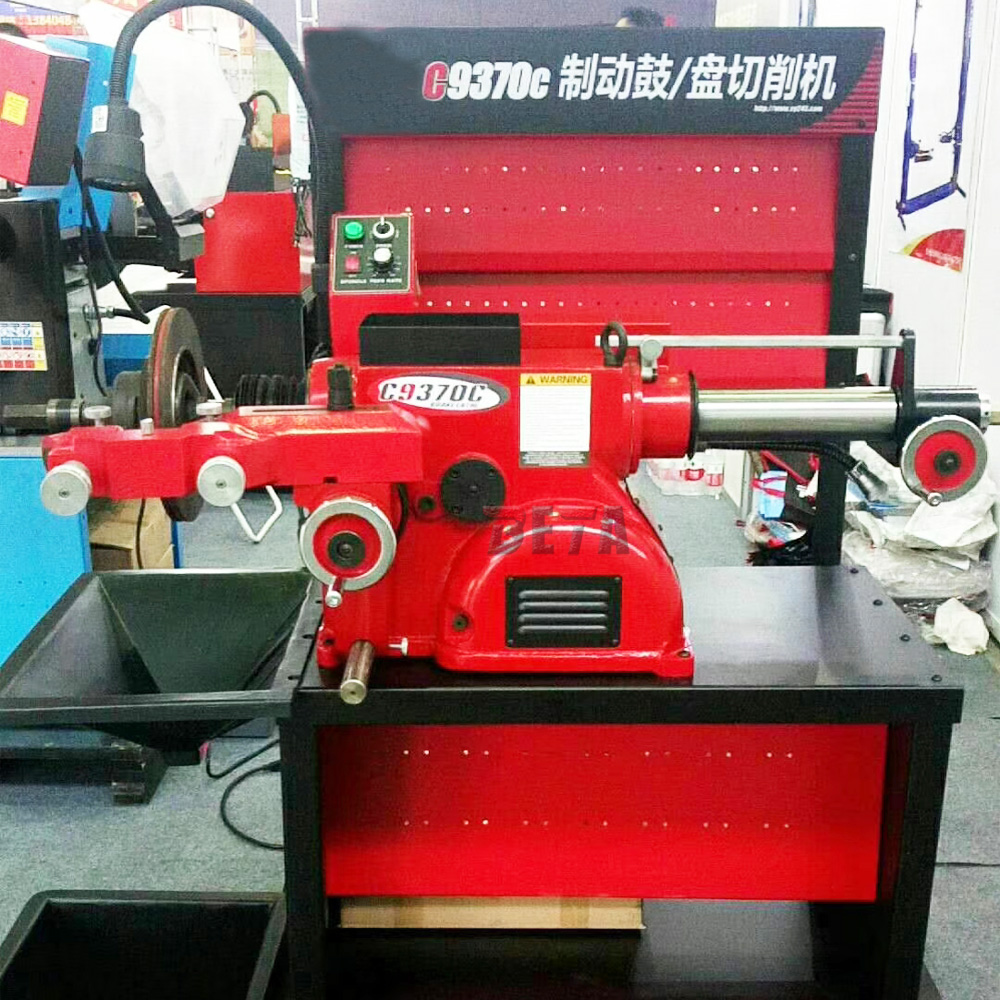

Brake drum and disc lathe
C9370C
DC motor
Variable spindle speed
Variable feeding speed
  • Features
  • Specification
  • CONFIGURATION

1. DC motors designed to meet the demanding requirement of industrial motion control.

2. “Change Adapter” system to eliminate the need for conventional bell clamps and cones.

3. The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability.

4. Infinitely variable spindle and cross feed speed settings for quick rough and precision finish cuts.

5. Positive rake cutter tip angle provides for a one pass finish virtually every time.


Model

C9370C

Spindle travel

251 mm

Spindle speed

70, 88, 118 rpm

Hand wheel graduation

0.05 mm

Spindle feed speed

0.05-0.5 mm/Rev

Cross feed speed

0.05-0.25 mm/Rev

Rotor diameter

180-457 mm

Rotor thickness

73 mm

Drum diameter

152-450 mm

Drum depth

251 mm

Motor

110V/220V/380V   50-60HZ

Dimension

1130x1030x1150 mm

Gross weight

325 kg

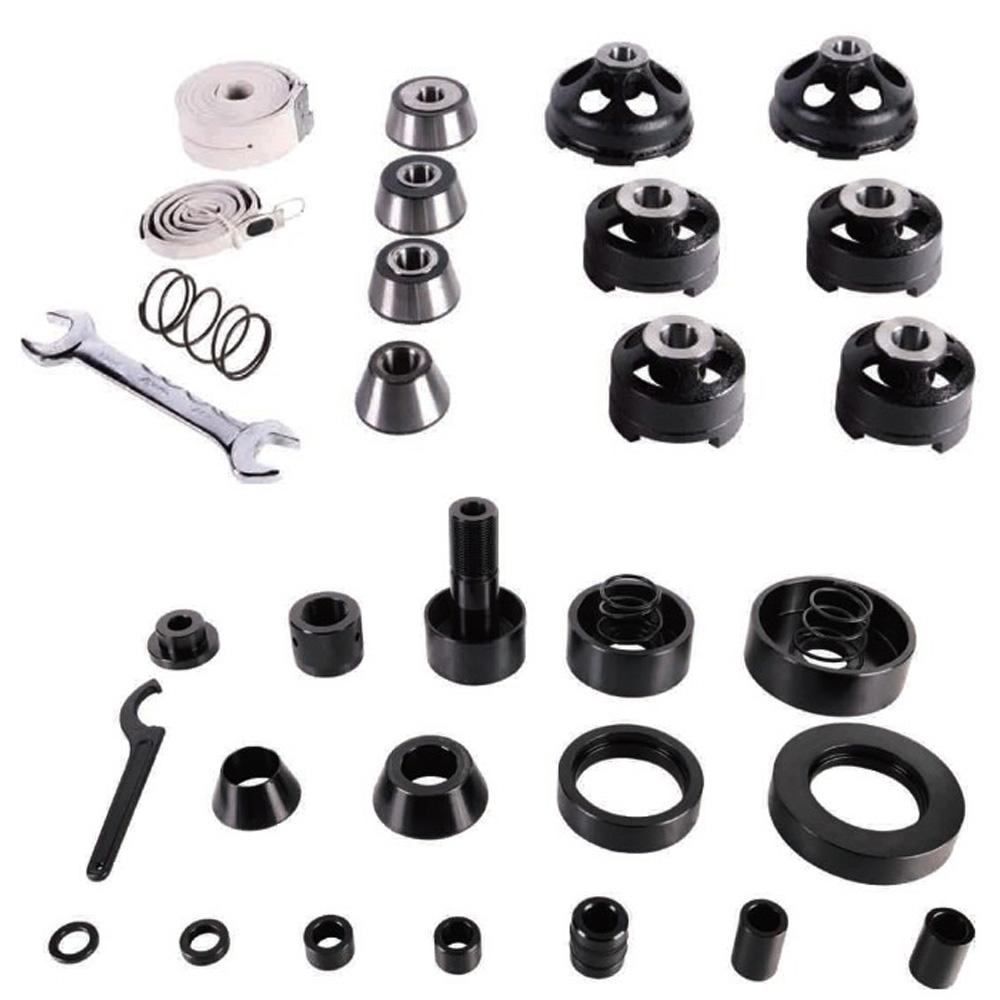

Standard accessories:

adapter

taper cone

clamp

spring

wrenches
