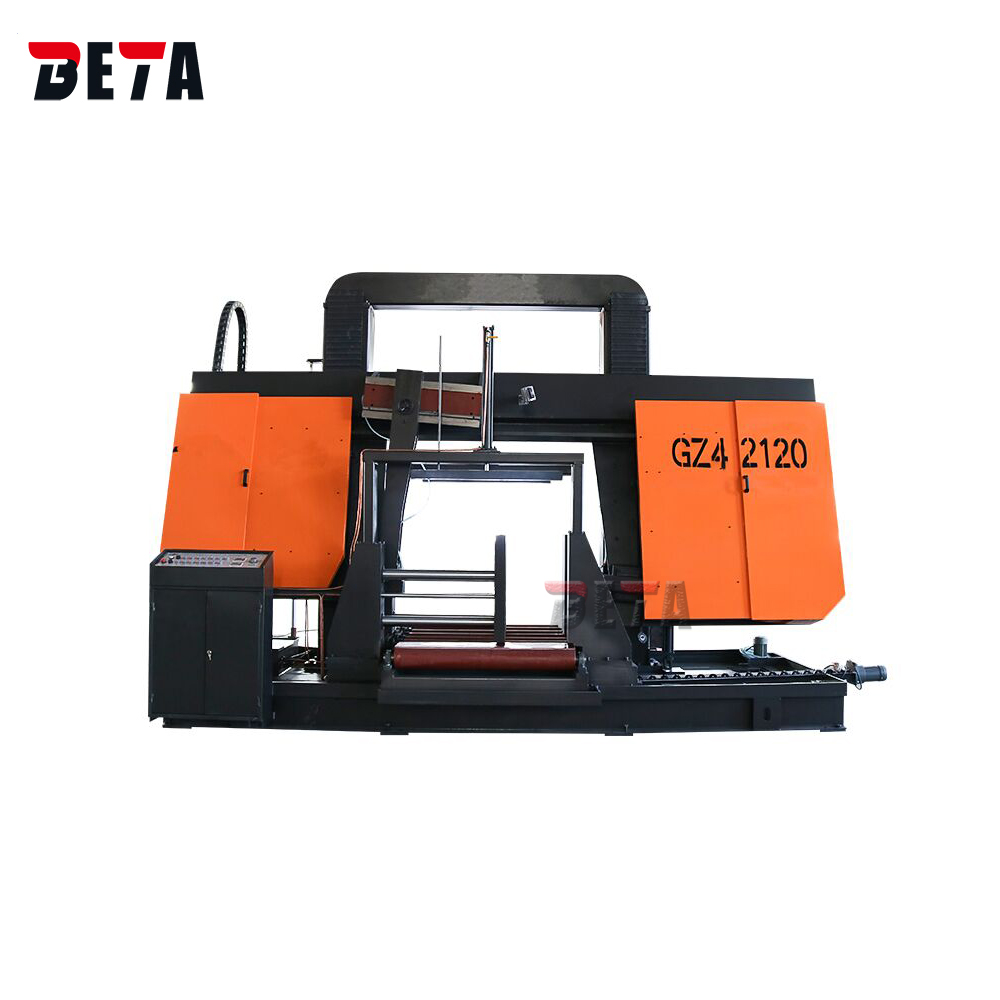

Horizontal band saw
GZ42120
Max. cutting diameter 1200mm
​Hydraulic clamping
Hydraulic blade tensioning
frequency cutting speed
  • Features
  • Specification
  • CONFIGURATION

1. The structure of double cylinders and double cylinders and the extra-long sliding sleeve (with self-lubricating bearings) form a stable sawing structure to ensure guiding accuracy and stable and reliable sawing;

2. The saw band guide device is double-guided by hard alloy and rolling bearing, and the design is reasonable, which effectively extends the life of the saw band.

3. The performance of high-performance worm gear reducer, strong power, high reliability, precise balance correction, reduce noise and vibration.

4. Unique hydraulic system design, stable lowering speed, this precision system can prevent abnormal damage of saw blade and achieve ideal sawing effect.

5. Optional large-stroke electric roller material rack can quickly realize the movement and positioning of the workpiece, reduce the labor intensity of workers, and improve work efficiency.


Model

GZ42120

Cutting capacity

 Round 1200mm,  square 1200*1200 mm

Blade size

11200*67*1.6 mm

Blade cutting speed

15-80 m/min frequency

Main motor power

15 kw

Oil pump motor power

2.2 kw

Coolant pump motor power

0.25 kw

Clamping type

Hydraulic

Saw blade tension

Hydraulic

Blade feeding speed

Hydraulic available speed

Net weight

8800 kg

Overall dimension

5200*2100*3200 mm


Standard configuration:

Hydraulic clamping

Hydraulic blade tensioning

15kw motor

Saw blade 1 piece

Hydraulic oil pump

Coolant water pump
