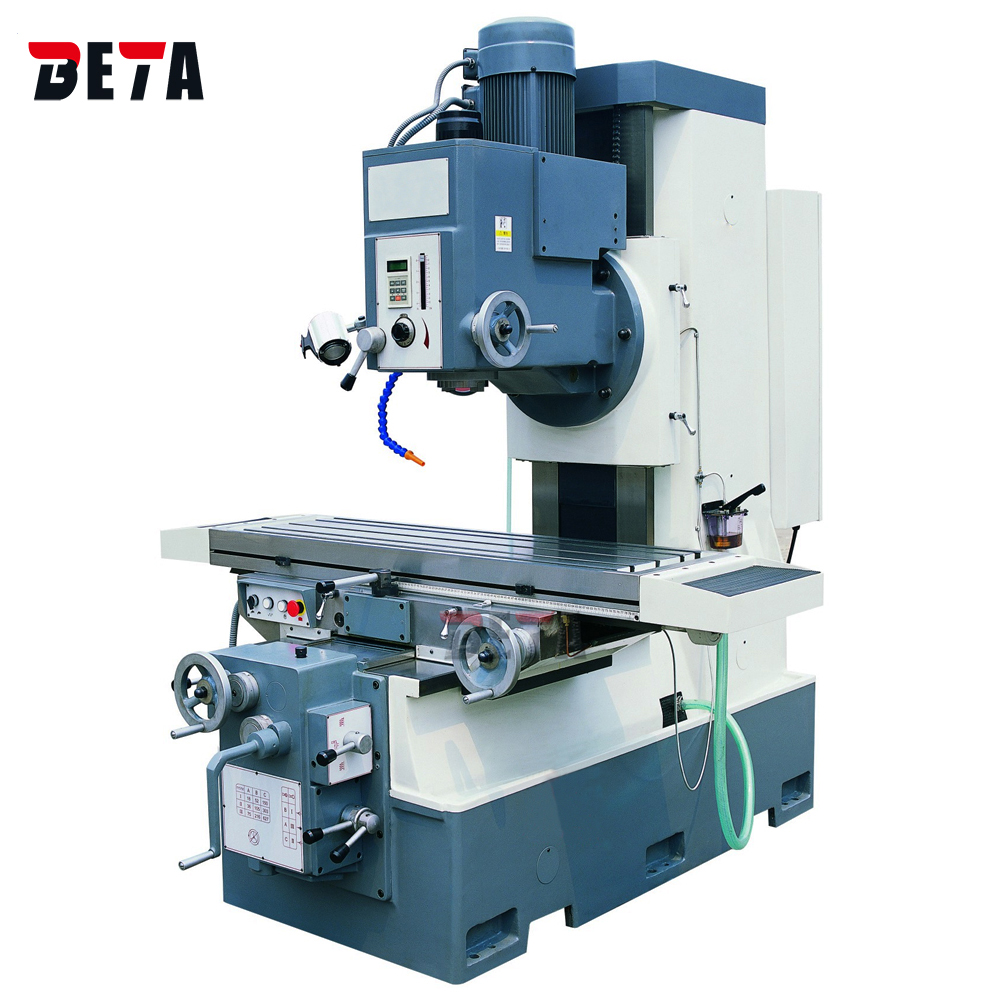

Universal milling machine
XA7140
Heavy duty bed type milling
Swivel milling head
X/Y/Z axis auto feeding
Worktable size 1400x400mm
Variable spindle speed
  • Features
  • Specification
  • CONFIGURATION

1. Gear transmission is suitable for high righdity and strong cutting.

2. Milling head can swivel ±30 degree.

3. Ultra-auto quenching precision grinding and scraping guide.

4. Super audio quenching rectangular guideway have high rigidity.

5. X/Y/Z axis with auto feeding and rapid feeding improve processing time.


ModelunitXA7140
Table sizemm1400x400
T slot   /  Size ( Width ) / Centre distanceno3/18/100
Max. load of Tablekg800
Longitudinal travelmm800
Cross travel  mm400
Vertical travelmm150-650
Spindle taper
ISO50
Quill travelmm105
Spindle speed /steprpm18-1800 variable
Spindle axis to column surfacemm520
Spindle nose to table surfacemm150-650
Longitudinal/cross feedmm / min18-627/9
Vertical
18-627/9
Longitudinal/cross rapid speedmm / min1670
Rapid Traverse vertical
1670
Main motorkw7.5
Feed motorkw0.75
Elevating motor for headstockKw0.75
Coolant motorkw0.04
Overall dimensioncm229x177x212
Machine weightkg3860


Standard accessories:

Milling chuck

Inner hexagon spanner

Middle sleeve

Draw bar

Wrench

Sheel end milling arbors

Foundation bolts

Nut

Washer

Wedge shifter

Work light

Emergency stop switch

CE standard electric components


Optional accessories:

SINO DRO 3-axis

New design operate panel

Machine vice

Spindle cover

Rotary worktable

Dividing head
