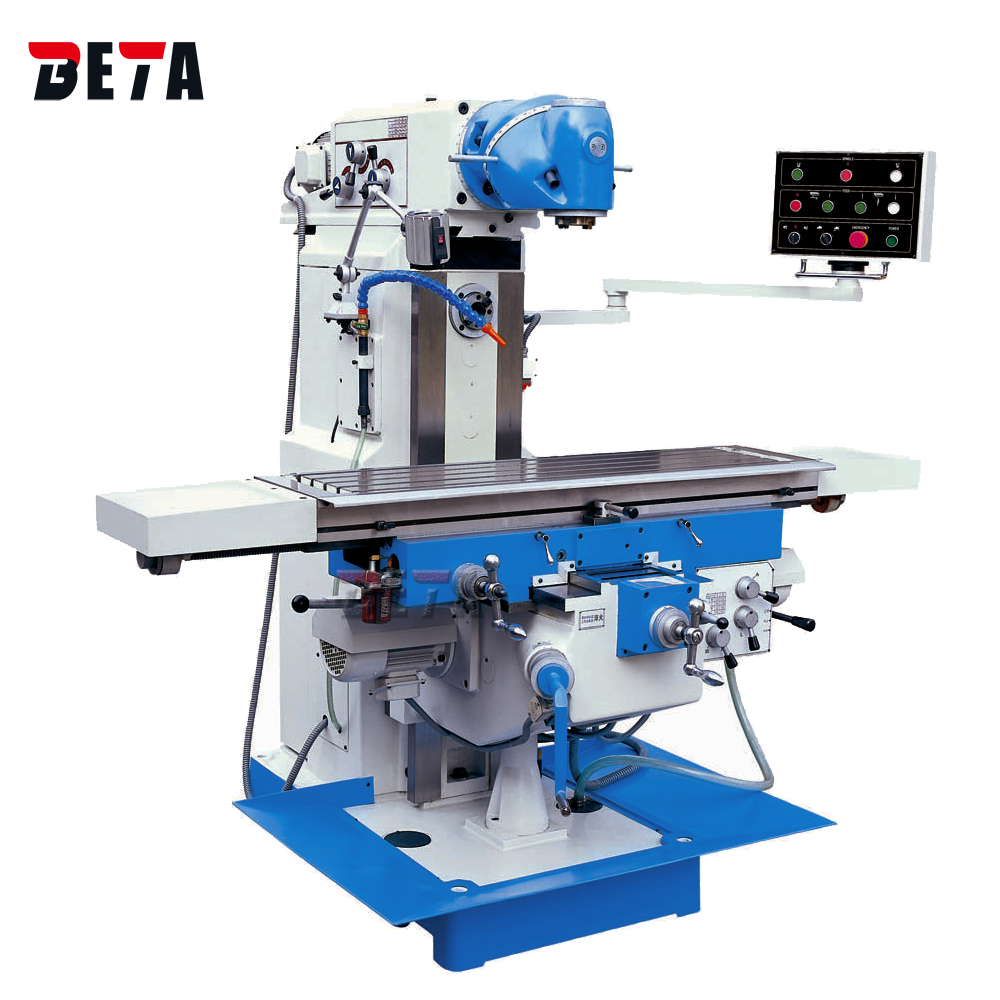

Universal milling machine

X6432

Milling head swivel 360 degree
With horizontal milling
Worktable size 1320x320mm
Travel X/Y/Z axis 1000/300/400mm
X/Y/Z axis rapid feeding

1. Universal swivel head milling machine 2. X,Y axis auto feed, Z motorized up&down 3. Milling head swivel 360 degrees 4. Ram move

Model	unit	X6432
TABLE :-
Table size	mm	1320x320
T slot	no	5
T Size ( Width )	mm	14
T Centre distance	mm	63
Max. load of Table	kg	300
swivel of table	degree	―
Machining range :
table Longitudinal travel (manual/auto) X-axis	mm	1000
table Cross travel (manual/auto) Y-axis	mm	300
table Vertical travel(manual/auto) Z-axis	mm	440
Main spindle :
Spindle taper		ISO40
spindle speed /step -- Vertical	rpm	45--1660/11steps
--Horizontal	rpm	38-1310/12steps
Max.end milling width	mm	125
Max. vertical milling Dia.	mm	25
swivel angle of swivel head	degree	360º
vertical spindle axis to column surface	mm	200-760
vertical spindle nose to table surface	mm	200-640
horizontal spindle axis to table surface	mm	30-450
horizontal spindle axis to arm bottom	mm	175
arm travel	mm	460
Feeds:
X /Y axis Longitudinal/cross feed	mm / min	20-360/8steps
Z axis Vertical/step	mm/min	422/1step
X/Y axis Longitudinal/cross rapid speed	mm / min	1200
Z axis Rapid Traverse vertical	mm/min	422/1step
POWER :
main motor	kw	3
(X/Y/Z) feed motor	kw	0.55(X/Y), 0.75(Z)
coolant motor	kw	0.04
Others:
package dimension	mm	226018702280
overall dimension	mm	202017102000
N.W./G.W.	kg	2100/2300

Standard accessories:

Work lamp

Coolant system

Emergency stop

CE standard electric

Hanging control panel

Milling chuck

Milling arbor

Draw bar

Tools & Tool box

Optional accessories:

Rotary worktable

SINO DRO 3 axis

Spindle cover

Worktable cover

Slotting head

Dividing head

Machine vice
