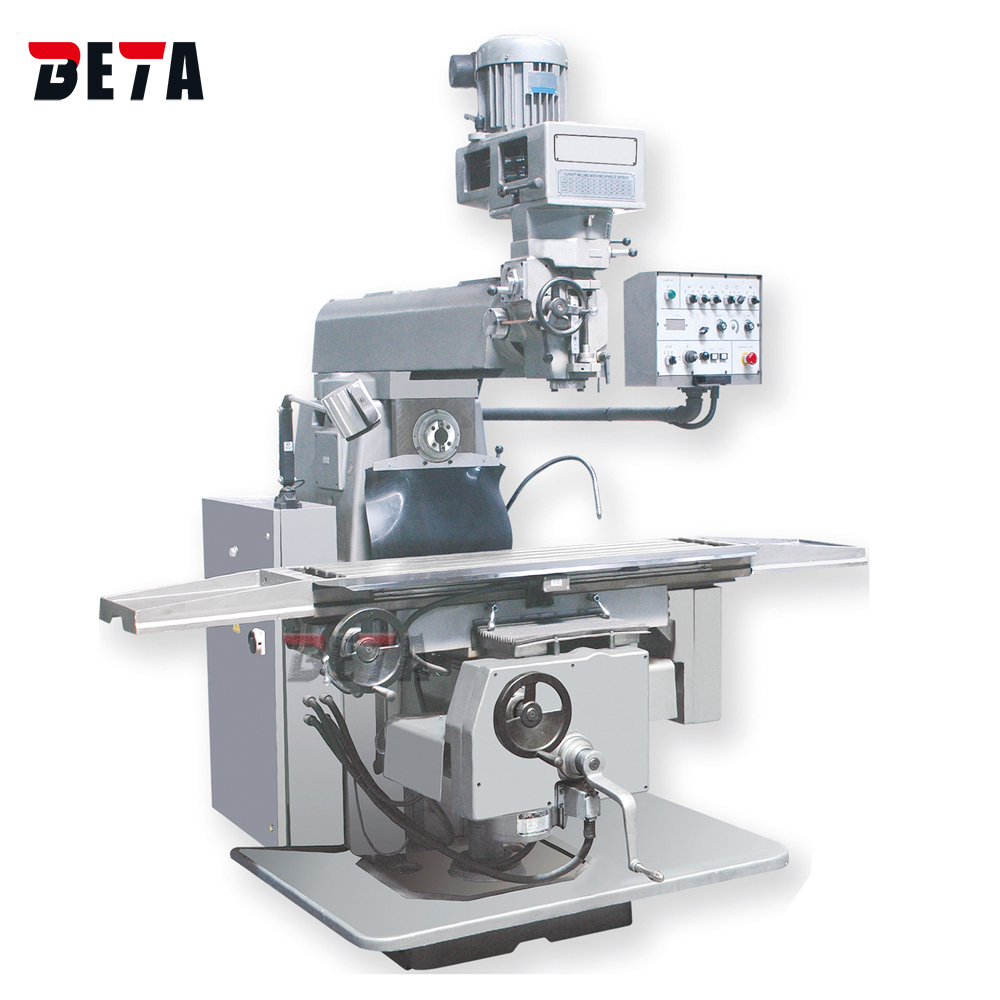

Turret milling machine
XW6330
Vertical and horizontal milling
5HP step speed turret milling head
Worktable size 1300x300mm
ISO40 spindle taper
INQUIRY
  • Features
  • Specification
  • CONFIGURATION

1. Both vertical and horizontal milling spindle.

2. 5HP Taiwan turret milling head with step speed.

3. With CE standard electrical components.

4. Milling head can swivel ± 45 degree.

5. 5HP horizontal milling motor.

6. X/Y axis rapid feeding.



ModelUnitXW6330
Table sizemm300×1300
Table longitudinal travelmm845
Table cross travelmm385
Knee vertical travelmm435
Table longitudinal feed ratemm/min0-3000
Table cross feed ratemm/min0-3000
Knee rapid speedmm/min900
Vertical spindleMotor powerHP5
Speedr/min65~4500(standard 16 steps,50hz:65~4500,60hz:80~5440)
Taper
ISO 40
Quill travelmm127
Quill feed ratemm/rev0.04/0.08/0.15
Head rotating
(R/L):90
Distance frome spindle end to tablemm115~545
Horizontal spindleMotor powerHP5
Speedr/min50hz:45/80/165/260/500/980.60hz:55/100/200/315/600/1180
taper
ISO 40
Distance frome spindle center to tablemm-20~410
Distance frome spindle center to rammm183
Ram travelmm483
Ram rotating
360
Netweightkg1900
Package size(L×W×H)cm180×150×220


Standard accessories:

Draw bar
Hand wheel for quill manual feed
Handle for table feed
Crank handle for Knee elevating
Pulley guard of milling head(only for step speed milling head)
Three ball handle for table feed
Lever for quill manual feed
Wrench
Hex. Wrench
Screw driver
Oil bottle
Toolbox
