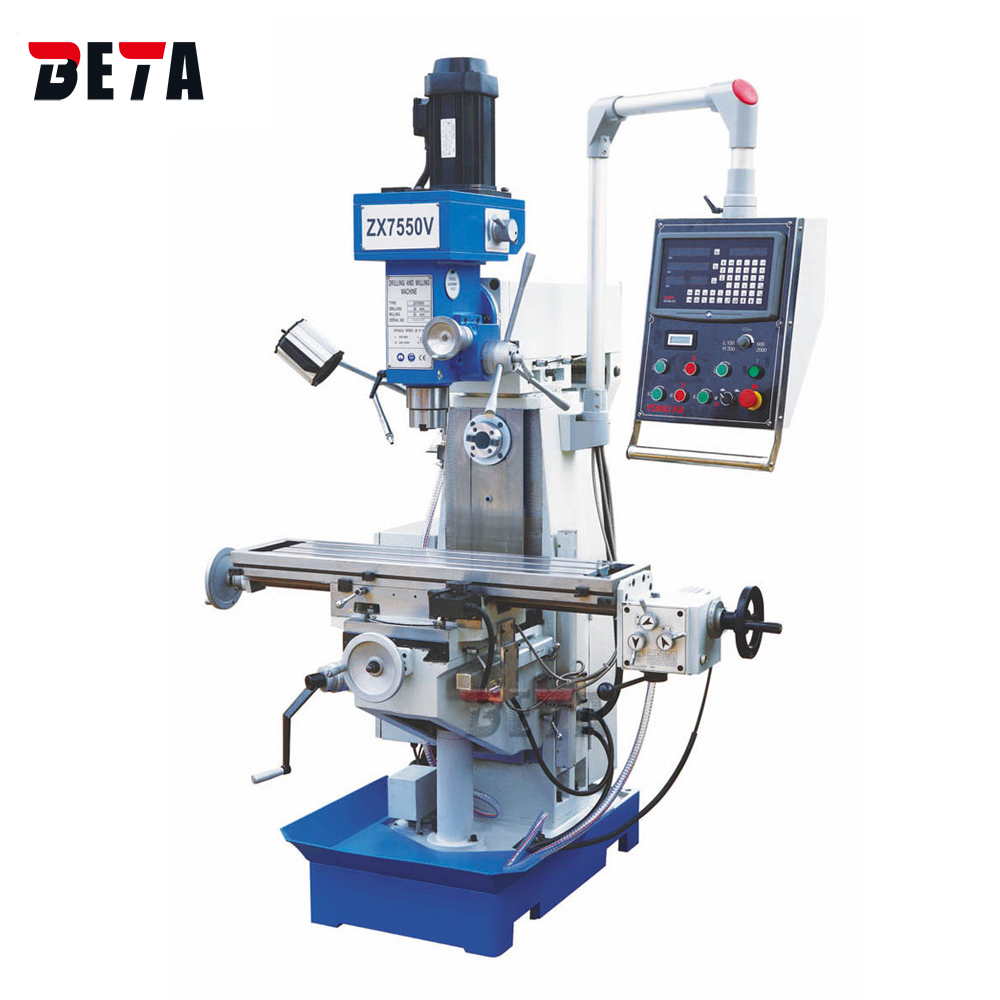

Milling drilling machine

ZX7550V

Variable frequency spindle speed
Worktable size 1000x240mm
Spindle taper ISO40
Worktable swivel ±45 degree
Both vertical and horizontal milling

1. Variable frequency drilling and milling machine.

2. Vertical milling and horizontal milling spindle.

3. 3HP vertical milling head.

4. WIth hanging control panel.

5. Worktable can swivel ±45 degree.

6. X/Y axis power feed can be ordered.

Model	ZX7550V
Max.drilling dia.	30 mm (ISO40)
Max.end milling width	100 mm
Max.vertical milling dia.	25 mm
Work table size	1000x240mm
Table travel	580x220mm
Spindle taper	ISO40
Spindle travel	120 mm
Spindle speed range	100-600 350-2000 rpm vertical 60-1350 rpm horizontal
Distance from spindle nose to table surface	60-360 mm
Motor	2.2 kw (V) 1.5kw (H)
NW/GW	850/930 kgs
Packing size	1340x1140x2240 mm

Standard accessories:

Draw bar

Adapter

Taper shank for drilling chuck

Drilling chuck

T slot bolt

Washer

Nut

Tilted wedge

Spanner

Inner hexagonal spanner

Horizontal milling bar

Oil gun 　

Optional accessories:

Table power feed

Halogen working lamp

Cooling pump

Power off protective cover(CE)

Digital display 3 axis

Double speed motor

Milling chuck set(8pcs/set)

Machine Vise（160mm）
