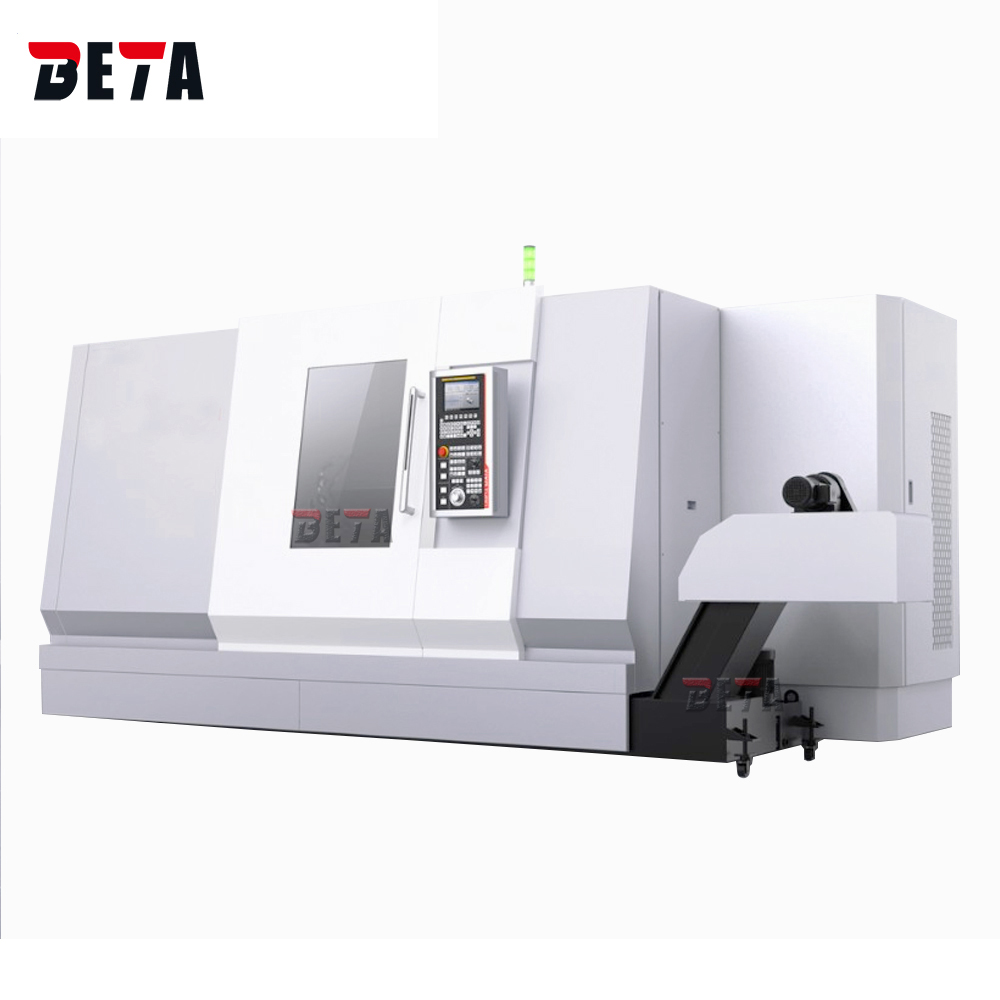

Slant bed CNC lathe
BT4x1500
Max. swing over bed 720mm
Max. turning diameter 630mm
Max. turning length 1500mm
INQUIRY
  • Features
  • Specification
  • CONFIGURATION

Features:

1.The 45 degree slant bed is casted amd forged at one time with good rigidity, the main binding surface is machined in a single process to guarantee a high accuracy.

2.Onc-piece tailstock with sleeve type expansion sub-spindle on box ways and bottom locking provides rigidity and stability.

3.Bridge spindle box with a sindle spindle headstock, the motor directly drives the spindle to rotate through the pulley, which starts quickly and smoothly. The integral high ridigity, high speed sleeve type spindle has the features of low temperature rise, little thermal deformation and high accuracy.

4. Hydraulic driven tool turret.

ItemsUnitSpecification
Max.swing over bedmmΦ720
Max. Turning diametermmΦ630
Max. Turning lengthmm1500
Max. Turning diametermmΦ500
Spindle nose
A2-8
Spindle bore diametermmΦ80
Max. Bar diametermmΦ66
Spindle speedr/min50～3000
Max. Spindle output torqueNm420
Main spindle motor powerkW15/18.5
(continuous/15min)
Chuck sizeinch10²
X-axis rapid feedingm/min30
Z-axis rapid feedingm/min30
X-axis travelmm315
Z-axis travelmm1570
Tailstock travelmm1200
Diameter of tailstock sleevemmΦ120
Travel of tailstock sleevemm150
Tailstock taperMorseMorse #5
Tool turret
Horizontal 12-station hydraulic turret
Tool sizeOuter round toolsmm25×25

Boring toolsmmf40,f32,f25,f20
Can the turret choose the closest cutter?
Yes
Machine weightkg9500
Max. Workpiece weightDisc typekg200(include chuck)

Draft typekg600(include chuck)
DimensionsL*W*Hmm4700*2270*2200


Standard accessories:

FANUC 0i-TF CNC controller (Japan) 10.4” Colorful LCD Screen,

Main spindle motor βiIP30/6000 SP FANUC (Japan),

X/Z-axis motor FANUC (Japan),

Sleeve type spindle from Taiwan,

Spindle bearings from NSK/NTN (Japan),

X/Z-axis #45 roller linear guideway from Taiwan PMI,

X/Z-axis ball screw from THK (Japan),

Ball screw bearings from NSK/NTN (Japan),

10 inch diameter hollow type hydraulic chuck from Taiwan,

Hydraulic tailstock,

Spindle belt from OPT (Germany),

12-station hydraulic turret from Taiwan ,

Coolant chip conveyor device,

Full-enclosed protection cover and chart
